you are browsing: ignition leads

We present the full range of ignition cables of Janmor company production. in our offer there are high-voltage ignition wires - with cores made of a ferromagnetic mixture and copper or Kevlar - in silicone or EPDM covers.
boxes
Proline Proline prestige / highest quality / reliability

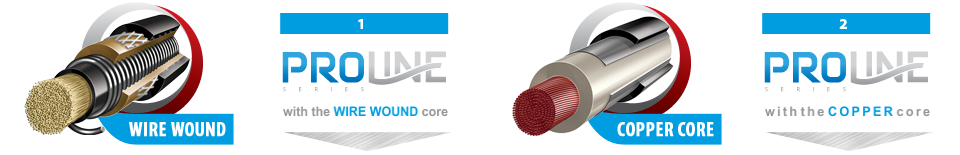

The Proline is a brand of ignition leads in insulations and covers of silicone. In our offer we have two versions of the product, varying dependent on the applied core:

wires
technical specifications
Ignition leads class: e
The electrical conductor: ferromagnetic blend + coils of wire 50 /cm
Ignition cable isolation: silicone/EPDM + plaitof the glassfiber
Ignition boots isolation: silicone
Cable diameter: 7mm / 8mm
Heat resistance: -40°c - +220°c
Wire color: blue, black, red
Warranty: 24 months

The ferromagnetic core consists of the base made of a glass fiber and kevlar, on which ferromagnetic blend has been pressed in. The base is closely wound up with wire of stainless steel coated additionally with semiconducting latex.

Wires made this way are characterized by a low electrical resistance (5,6 kOhm / m) and excellent level of electromagnetic pulses attenuation.

Used silicone insulations make the wires are ideal both for petrol vehicles and gas LPG/CNG. wires of the iso e class i f class having isolation of the silicone in combination with good quality terminals and theirs silicone shields are really able to absorb the additional warmth produced on the spark plug as a result of the gas burning.

The external silicon isolation ensures the highest level of protection against the all external factors, i.e. the resistance against acids, oils and grease action, greatest possible resistance against temperature fluctuations: -50 °c - +250 °c and the electric breakdown up to 70.000 V

layer

Fiberglass mesh increases the wire resistance against mechanical stress.

layer

The glass fibre network shield increases resistance of the wirea gainst effect of any mechanical factors

layer

The electrical conductor made of the stainless steel distinguishing itself low electrical resistance of 5,6 k?/m assures current excellent conducting and simultaneously suppressing of any electromagnetic interferences being made at the starting up of the engine

layer

Internal epdm isolation

layer

technical specifications
Ignition leads class: e
The electrical conductor: copper 1 mm 2
Ignition cable isolation silicone/EPDM + plaitof the nylon tape
Ignition boots isolation: silicone
Cable diameter: 7mm
Heat resistance: -40°c - +220°c
Wire color: black
Warranty: 24 months

Coppercore wire is formed as a coil with pressed nylon tape which is increasing the mechanical strength of the core. the core is insulated by two insulating layer - the inner made of epdm and outer made of silicone.

Wires made this way have excellent spark quality with virtually zero power loss. attenuation of electromagnetic pulses and equal resistance of all cables is provided by resistors embedded in covers of metal terminals.

Used silicone insulations make the wires are ideal both for petrol vehicles and gas LPG/CNG. wires of the iso e class i f class having isolation of the silicone in combination with good quality terminals and theirs silicone shields are really able to absorb the additional warmth produced on the spark plug as a result of the gas burning.

The external silicon isolation ensures the highest level of protection against the all external factors, i.e. the resistance against acids, oils and grease action, greatest possible resistance against temperature fluctuations: -40 °c - +220 °c and the electric breakdown up to 70.000 V

layer

The nylon tape increases resistance of the wire against effect of anymechanicalfactors

layer

Internal epdm isolation

layer

Solid electric conductor is made of copper and ensure shighest possible conductivity range constituting almost a zero resistance for the flowingcurrent

layer

Ecoline Ecoline optimal quality / confidence any time

The Ecoline is a brand of ignition leads, being characterized by the best ratio of the quality to the price. In our offer we have two versions of the product, varying dependent on the applied core:

cooper
technical specifications
Ignition leads class: d
The electrical conductor: kevlar
Ignition cable isolation: epdm
Cable diameter: 7mm / 8mm
available colors: yellow, black, red
Warranty: 24 months

In the case of ecoline wires with KEVLAR CORE spark energy is transferred through a core made of Kevlar surrounded by the insulation coating made of EPDM.

Such construction of the core provides a very good quality of the spark, the electric resistance of this type of wire is distributed uniformly along its entire length.

Covers insulation depending on the version is made of silicone or EPDM and provides overvoltage resistance and tightness, as well as resistance to temperature fluctuations and chemical and atmospheric factors.

Terminals used by our company ensure the best possible connection between the ignition wire and ignition cap or spark plug.

The outside epdm insulation ensures basic degree of the protection against external factors influence i.e. resistance against effect of anyacids, oils and greases, and thermal resistance strange of -30 °c - +180 °c

layer

electrical conductor made of kevlar assures very good conducting of electric current and , simultaneously suppressing electro magnetic interferences being emitted at the startingup the engine

layer

technical specifications
Ignition leads class: d
The electrical conductor: copper 1 mm 2
Ignition cable isolation: epdm
Cable diameter: 7mm
available colors: black
Warranty: 24 months

In the case of ecoline wires with COOPER CORE spark energy is transferred through the core made as copper coil surrounded by a EPDM insulation layer.

Such core design provides excellent spark quality with virtually zero power loss. attenuation of electromagnetic pulses and equal resistance of all wires is provided by resistors embedded in covers of metal terminals.

Covers insulation made of silicone or EPDM provides overvoltage resistance and tightness as well as resistance to Temperature fluctuations and chemical and atmospheric factors; resistors in covers equalize electrical resistance of wires and eliminates the formation of disruptions.

Terminals used by our company ensure the best possible connection between the ignition wire and ignition cap or spark plug.

The outside epdm insulation ensures basic degree of the protection against external factors influence i.e. resistance against effect of anyacids, oils and greases, and thermal resistance strange of -30 °c - +180 °c

layer

Solid electric conductor is made of copper and ensure shighest possible conductivity range constituting almost a zero resistance for the flowingcurrent

layer

sparkling sentiments

Retroline is a brand of the ignition wires dedicated for classic vehicles. creating a set of individual wires we use the most similar to the original shape covers, we also have a choice of several kinds of ignition cable, including those stylized as cables from age - in cotton braid.

The 1963 Mercedes with JANMOR wires
Janmor has contributed to impart new life to the antique model of Mercedes brand car. our specialists dismantled worn out wires.

Do you need a wire to classic car?

Here is a brief guide to how a dedicated bunch of retroline wires is created.

  • 1Please send us the most accurate picture of covers and terminals set.
  • 2Enter lengths of individual wires.
  • 3Select the type and color of the cable.
optimal quality / reliability at any time

ignition wires, created for the needs of motor boats engines are based on Magstar for marineengine 8mm cables with increased insulation strenght and low resistance of 1.2 ohm. for greater insulation tightness a glued covers are used.

Do you need a wire to motor boat?

We willingly create a new dedicated set. here is a brief guide about information which would be helpful for us

  • 1Please send us the most accurate picture of covers and terminals set.
  • 2Enter lengths of individual wires.
  • 3Select the type and color of the cable.
forklift safety and reliability during operation

Forkline is a line of the ignition leads for forklift trucks, which is now consisted of 39 references assigned to more than 330 models of forklifts. complement to this offer is the possibility of receiving a bespoke set.

We offer wires to almost any of brand forklift trucks.

Do you need a wire to forklift truck?

We willingly create a new dedicated set. here is a brief guide about information which would be helpful for us

  • 1Please send us the most accurate picture of covers and terminals set.
  • 2Enter lengths of individual wires.
  • 3Select the type and color of the cable.
